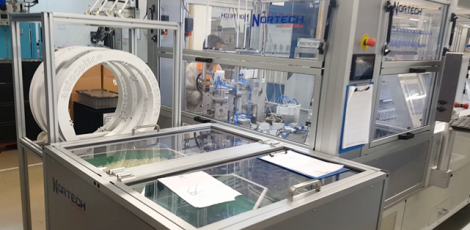

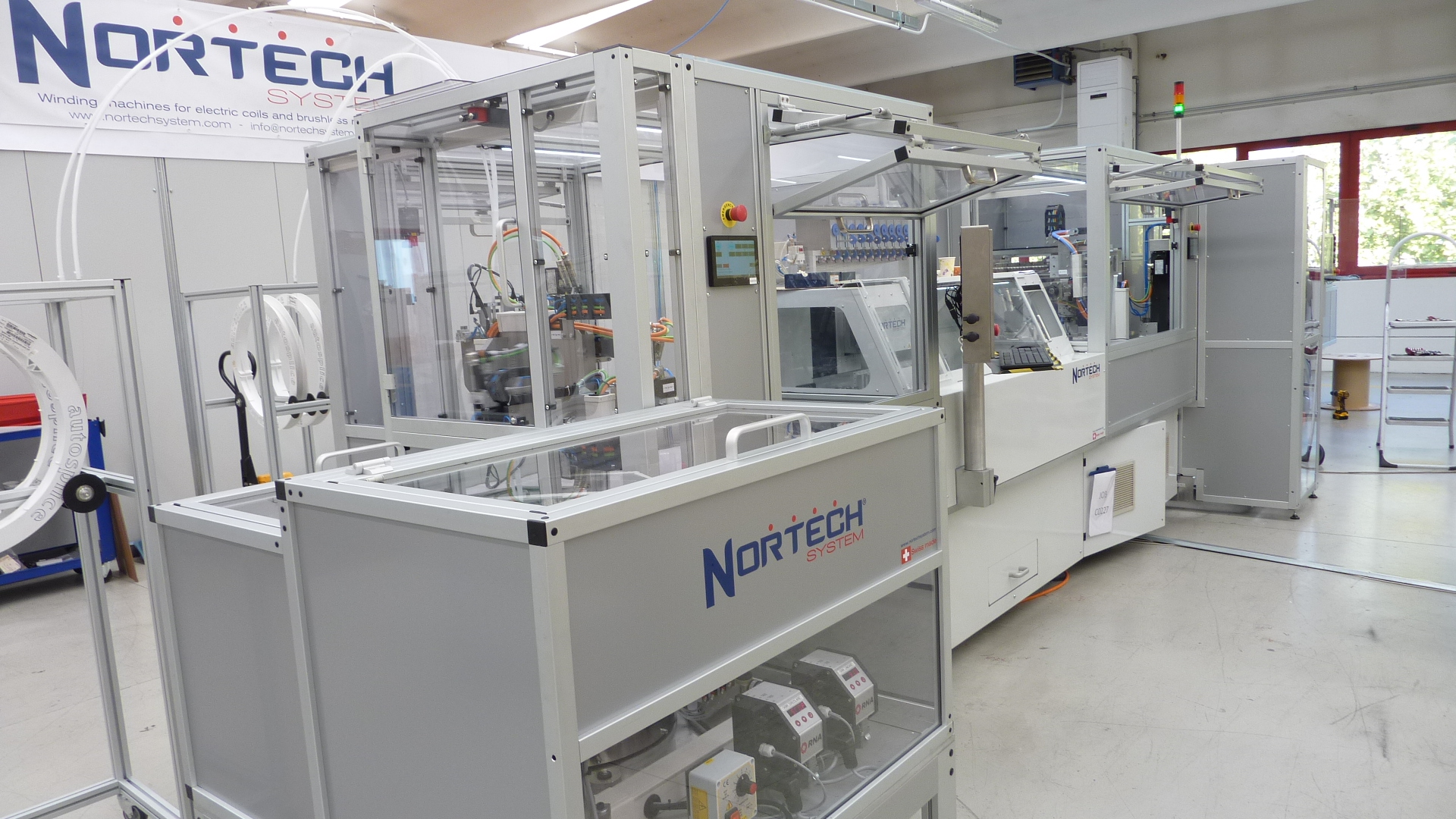

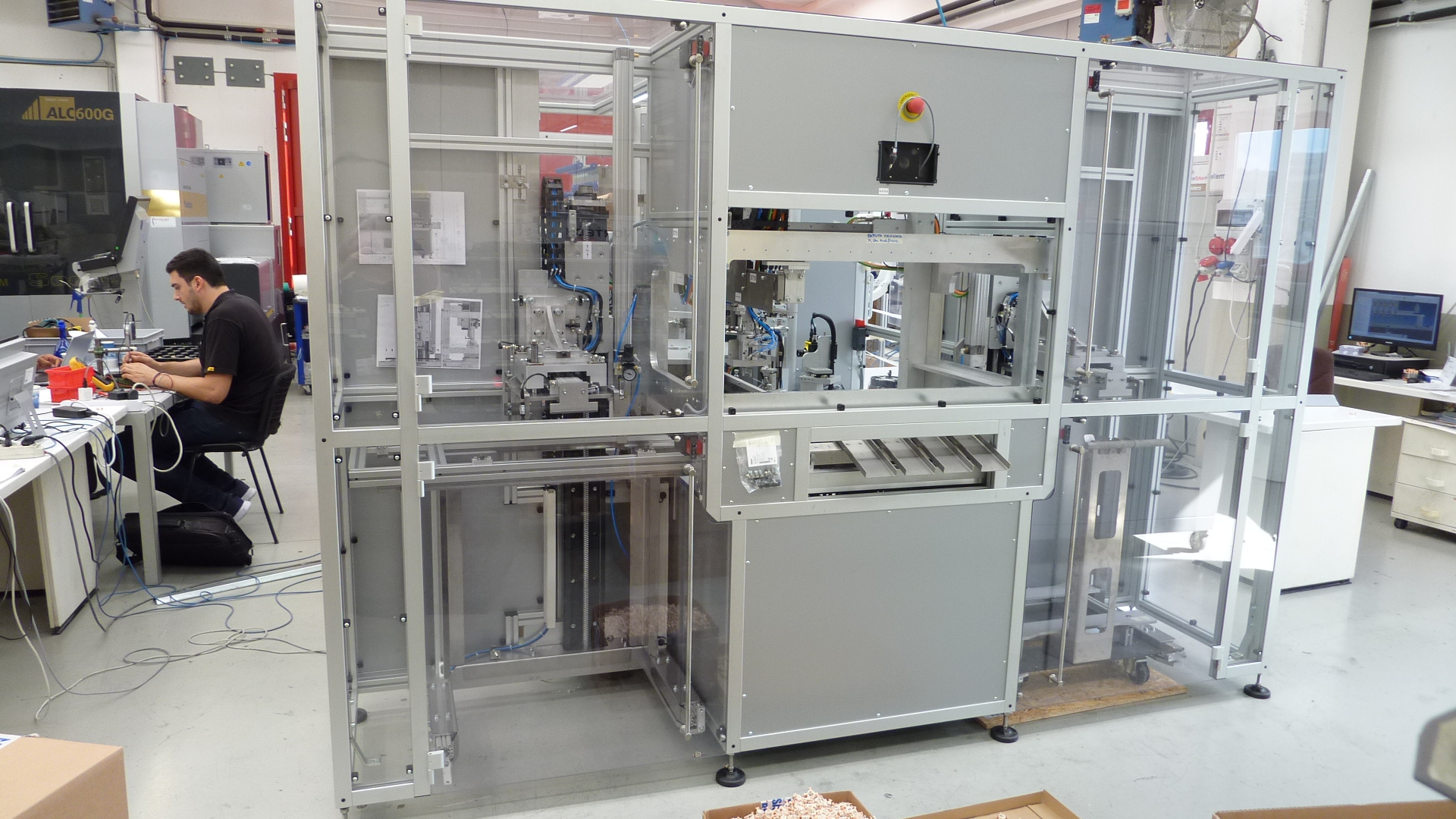

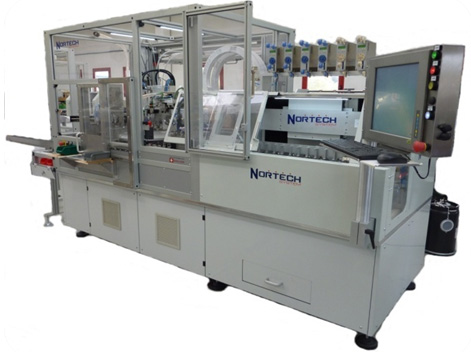

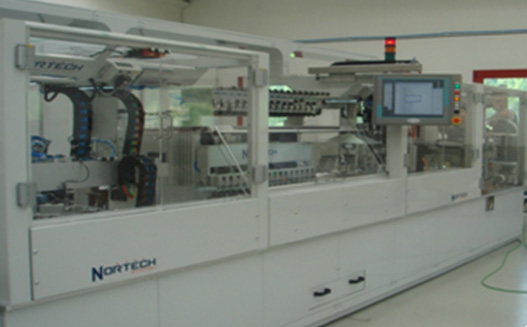

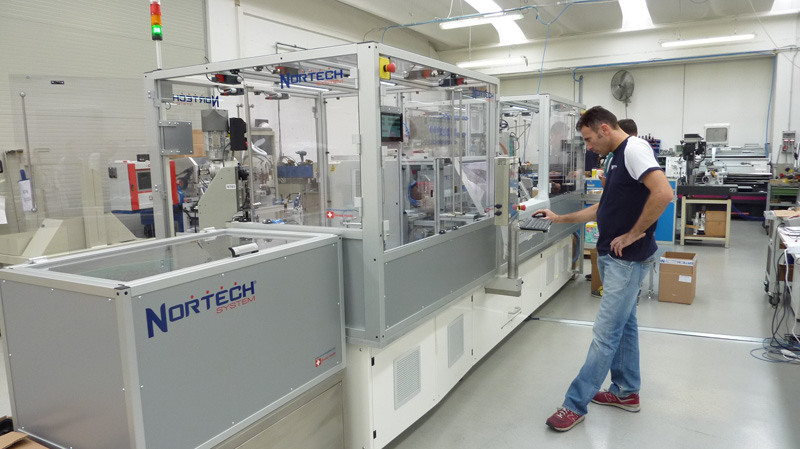

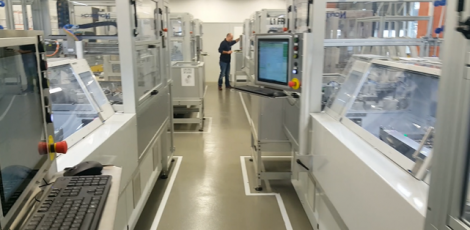

Fully automatic winding system – configured with winders for coils or motors

Configured according to the customer’s need, are made up of compact modules based on welded structure complete of CE safety shield.

Transport system: Programmable shuttles or free pallets recirculation.

Performing operations:

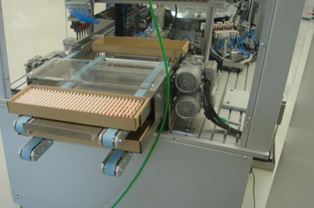

  • Automatic loading & palletize
  • Insertion of terminals (Pins, pre shared IDC etc.)

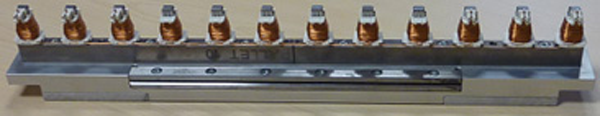

  • Winding (coils & motors)
  • Soldering – laser or arc welding – electric welding
  • Electric test (resistance – surge etc.)

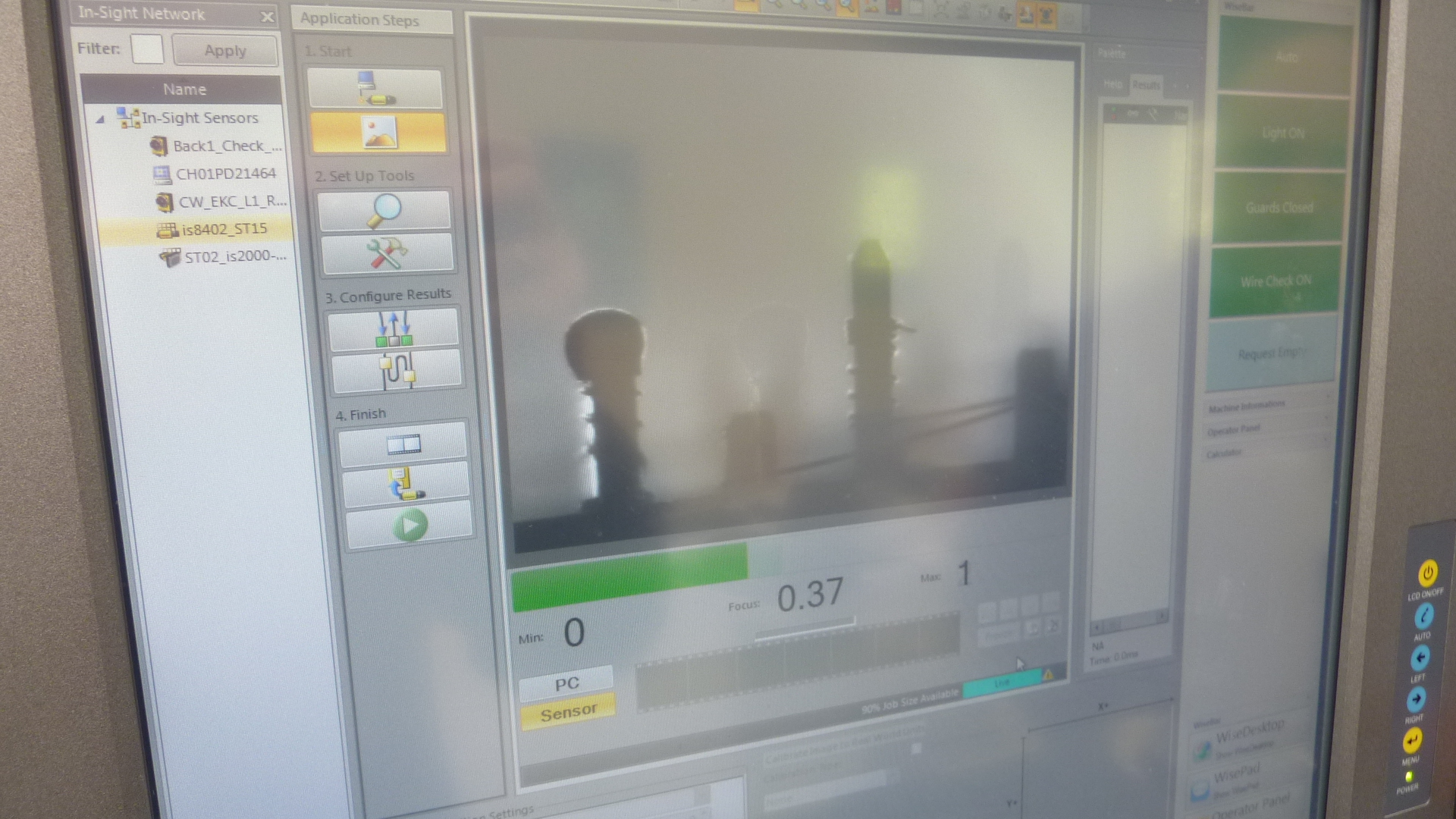

  • Camera control & marking

Service – internet/ethernet

Program back up by USB connection

Software – WISE windows operating system

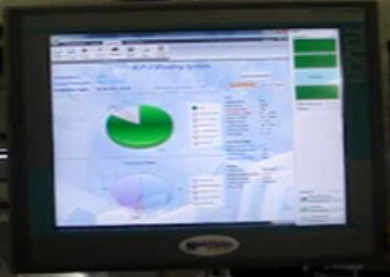

Data Report – Diagnostic & alarms visualization
